Autor Tema: Fuerzas Submarinas en La Armada Bolivariana de Venezuela.  (Leído 5887 veces)
zuhe
Moderator foro RKKA
Mariscal
*

Karma: 1039
Mensajes: 3660



« Respuesta #15 : 13 Noviembre 2017, 23:12:21 »

Saludos,

De dos a cuatro Project 636.3 Improved 'Kilo para Venezuela. Según:

Citar
Sources: Venezuela restarts effort to buy Russian submarines

Jose Higuera - IHS Jane's Defence Weekly
16 October 2017

Venezuela has begun negotiating with Russia towards a potential order of two to four Project 636.3 Improved 'Kilo'-class diesel-electric submarines (SSKs) following Venezuelan President Nicolas Maduro's meeting with his Russian counterpart, Vladimir Putin, in Moscow earlier this month, military sources in Caracas told Jane's .

Venezuela announced intentions to buy Russian-built submarines in 2005 during Hugo Chavez’s presidency. Protracted negotiations resulted in no sales as the Venezuelan Navy preferred Russia’s Amur 1650 SSKs that Russia was not ready to sell.

Sources said this time interest is exclusively focused on the Improved 'Kilo' class, for which Russia is reportedly offering a credit of around USD1 billion towards an initial order for two boats.
Fuente:
Para ver el contenido hay que estar registrado. Registrar o Entrar
En línea
zuhe
Moderator foro RKKA
Mariscal
*

Karma: 1039
Mensajes: 3660



« Respuesta #16 : 02 Septiembre 2020, 20:43:30 »

Saludos.


En este escrito denominan VAS-525 al minisubmarino fabricado en el astillero Ucocar citan a usuario Sahureka por cierto.

Una imagen que coloco Sahureka en otro foro:
Para ver el contenido hay que estar registrado. Registrar o Entrar

Citar
New Intelligence: The Venezuelan Navy’s Secret Submarine
H I SuttonContributor
Aerospace & Defense

I cover the changing world of underwater warfare.
Venezuela’s Navy has a top-end submarine which is virtually unknown even in defense circles. The minisub is closely related to one recently tested by the U.S. Navy SEALs. Open source intelligence (OSINT) that I have seen strongly points to its presence in Puerto Cabello, Venezuela. This is a sophisticated design with both civilian and military applications.

Para ver el contenido hay que estar registrado. Registrar o Entrar
Venezuelan Navy submarine
The Venezuelan submarine is either a VAS-525, or a
H I SUTTON

The minisub appears to be a VAS 525 model designed by GSE Trieste in Italy. Evidence of the vessel was unearthed by an OSINT researcher ‘sahureka’ who has a track record of unearthing fresh information on Latin American navies.

The VAS 525 SL Mk2 version, which this is very similar to, is 23.9 feet long and about 6.9 feet across. Under the teardrop shaped composite outer shell is a strong steel pressure hull. Inside this it can transport a pilot and 5 passengers or 1,100 lb of payload. The largest VAS-525 variant can hold as many as 12 people, although this one is smaller. They can dive to depths of up to 525 feet (hence the name), which is deeper than many similar craft. Maximum speed is 6 knots (~7 mph).


Some versions of the VAS 525 cannot operate divers because the cabin has to remain sealed at all times underwater. But other models, like this one appears to be, can. It will have a second lock-out chamber inside for up to three divers. This capability allows it, potentially, to be used as special forces transport. Or they could deliver divers to the site of underwater infrastructure such as internet cables.

The VAS 525 was designed by the same engineers as the Button 5.60 used USSOCOM (U.S. Special Operations Commend). This was an experimental Dry Combat Submersible (DCS) for the U.S. Navy SEALs. The submersible, designated UOES-3 (User Operational Evaluation System-3) in U.S. service, was designed to conduct covert missions from a host submarine. It was much better optimized for the SEAL mission than the VAS-525 and was equipped with a range of ‘leading navy only’ technologies.

Para ver el contenido hay que estar registrado. Registrar o Entrar
US Navy SEALs GSE Trieste Button 5.60 Dry Combat Submersible (DCS)
The Venezuelan Navy submarine is closely related
THE NATIONAL NAVY SEAL MUSEUM IN FORT PIERCE, FLORIDA.
As it turned out the Navy did not put this Button into service and instead adopted the larger British designed S351 DCS. But the trials Button 5.60 vehicle is now on display at the National Navy UDT-SEAL Museum in Florida. It gives us an idea of the design pedigree behind the Venezuelan sub.

The Venezuelan vessel appears to have been under construction at UCOCAR (Naval Coordinator Unit of Navy Dry-dock Services) military shipyard in Puerto Cabello, Venezuela. Evidence suggests that it has been there since around 2015, but may now be in a finished state.

It is unclear how UCOCAR obtained the plans to build the Italian submarine. One theory is that one was acquired by Corpoelec, the fully integrated state power corporation. This may have been before international sanctions against the regime came into effect. The president of Corpoelec was at a time Luis Motta Domínguez who was also a General in the Army. Corpoelec had a VAS-525 SL Mk2.


Alternatively they may have acquired only the detailed plans. Or possibly a civilian copy on the second hand market. Whatever the route, Venezuela has at least one and may be able to put it into local production.

The Venezuelan Navy (Armada Bolivariana de Venezuela) is normally listed as operating just two submarines. These German supplied Type-209 boats can carry the relatively modern Atlas Electronik SST-4 Seal wire-guided torpedo. But there is serious doubt that either of them is currently seaworthy. The minisub may therefore be the Venezuelan Navy’s only submarine.
Fuente:
Para ver el contenido hay que estar registrado. Registrar o Entrar

El autor del escrito exagera con lo de secreto.
« Última modificación: 02 Septiembre 2020, 20:46:53 por zuhe » En línea
zuhe
Moderator foro RKKA
Mariscal
*

Karma: 1039
Mensajes: 3660



« Respuesta #17 : 04 Septiembre 2020, 02:19:20 »

Saludos.

En la siguiente página web se puede encontrar las características del VAS 525/60 LE MK 2

Para ver el contenido hay que estar registrado. Registrar o Entrar
Ver:
Para ver el contenido hay que estar registrado. Registrar o Entrar
En línea
zuhe
Moderator foro RKKA
Mariscal
*

Karma: 1039
Mensajes: 3660



« Respuesta #18 : 02 Julio 2021, 08:16:06 »

Saludos.

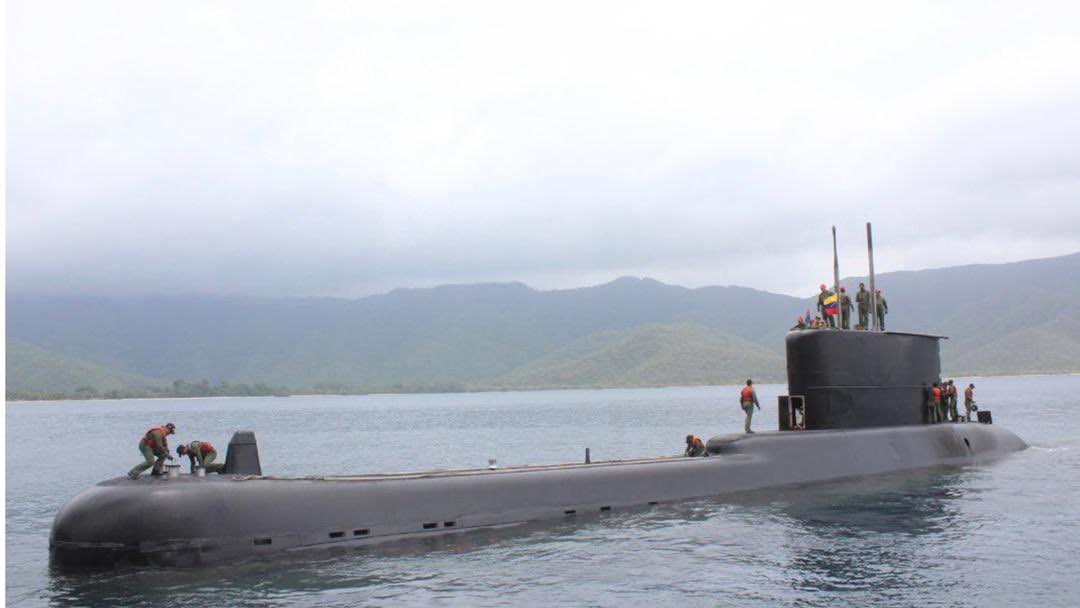

El  S-31  cumplió el 46° Aniv. de la botadura al mar de ese submarinos de la Armada:
Para ver el contenido hay que estar registrado. Registrar o Entrar
Para ver el contenido hay que estar registrado. Registrar o Entrar
En línea
